How Does Timecode Vinyl Actually Work? (Pt. 3)

Wed 27 August 2025 Jan Claußen traktor, timecode, dvs, vinyl control

Since its release in 2011, the Traktor Control Vinyl MK2 has sparked curiosity among digital DJs and audio developers alike. Its timecode format stands apart from Serato’s, which we explored in the previous posts. With the MK2 system, Native Instruments introduced a more advanced timecode that boosts resolution and accuracy by applying advanced cryptographic techniques.

In this post, we’ll break down how it works at a basic level and how Mixxx is processing the signal.

Recap: How Serato Timecode Works

Serato’s timecode is built around a Linear Feedback Shift Register, modulated onto a 1 kHz carrier using amplitude modulation (AM) - a legacy technique from radio transmission.

The demodulation process is relatively simple: when one stereo channel crosses the x-axis, the other hits a peak. If that peak exceeds a certain threshold, the system reads it as a 1, if not, it’s a 0.

We covered this in more detail in DVS Internals Pt. 1 and Pt. 2.

The Traktor MK2 Signal

Below is a signal that resembles what you’ll find on the Traktor MK2 Control vinyl/CD, which has been specifically generated for this blog post by using a Raised-Cosine Filter to modulate a random sequence onto the carrier.

The carrier wave operates at 2500 Hz, a significant increase from Serato’s 1000 Hz.

Advantage: The higher carrier frequency allows for 2.5× greater resolution.

Upon inspection, this waveform clearly doesn’t use amplitude modulation - the amplitude remains constant. Instead, it appears to be offset-modulated, where the signal is shifted vertically from the x-axis. This is a non-standard technique not commonly used in typical modulation schemes.

On the original vinyl version (not shown here due to copyright), the offset can be so large that the signal floats entirely above the x-axis for multiple cycles - making zero-crossing detection impossible.

Even when that doesn’t happen, the offset causes the time interval \(\Delta t\) between zero-crossings to become irregular, introducing audible pitch flutter.

To decode the signal, we must solve:

1. How to filter the signal to enable pitch detection
2. How to demodulate this non-standard modulation
3. How to decipher the code that is modulated onto the carrier

Pitch Detection

Note: If you're unfamiliar with pitch detection in DVS systems, revisit DVS Internals Pt. 1.

Our goal is to produce a signal that oscillates evenly around the x-axis. This filtered waveform can then be processed by the existing pitch detection algorithm.

A simple discrete derivative operation achieves this:

\(\text{where:}\)
\(\text{- x[n]: Input sample}\)
\(\text{- x[n-1]: Delayed input sample}\)
\(\text{- y[n]: Difference of both values}\)

When applied to the offset-modulated signal, we get:

The resulting waveform oscillates cleanly around zero, which is ideal for analysis. It also makes it easier to pinpoint the half-cycle peaks needed for bit detection.

Demodulation Techniques

To extract bits from the signal, we detect the zero-crossings and sample the amplitude of the sinusoid at those moments.

You may notice that the derivative’s zero-crossings don’t align perfectly with the original peaks. That’s due to a delay introduced by the filter. Smoothing the signal first, then compensating for the delay (e.g., by selecting \(x[n-3]\)), yields better results.

For greater accuracy, one could analyze the phase response \(\phi(\omega)\), which shows how filter delay varies with input frequency - but for this use case, a fixed delay works well enough.

The filtered signal can cross the x-axis in two directions-positive to negative or vice versa. Based on the direction, we determine which half-cycle contains the encoded bit. In this example we only use the upper half-cycle for decoding, but you can also decode the signal from the lower half-cycle.

Demodulation is then as simple as applying a threshold: amplitudes above it are 1, and below it are 0.

On actual vinyl, the physical behavior of the needle causes the offset to decay over time, because the needle slowly drifts back to the middle. This decay complicates bit extraction.

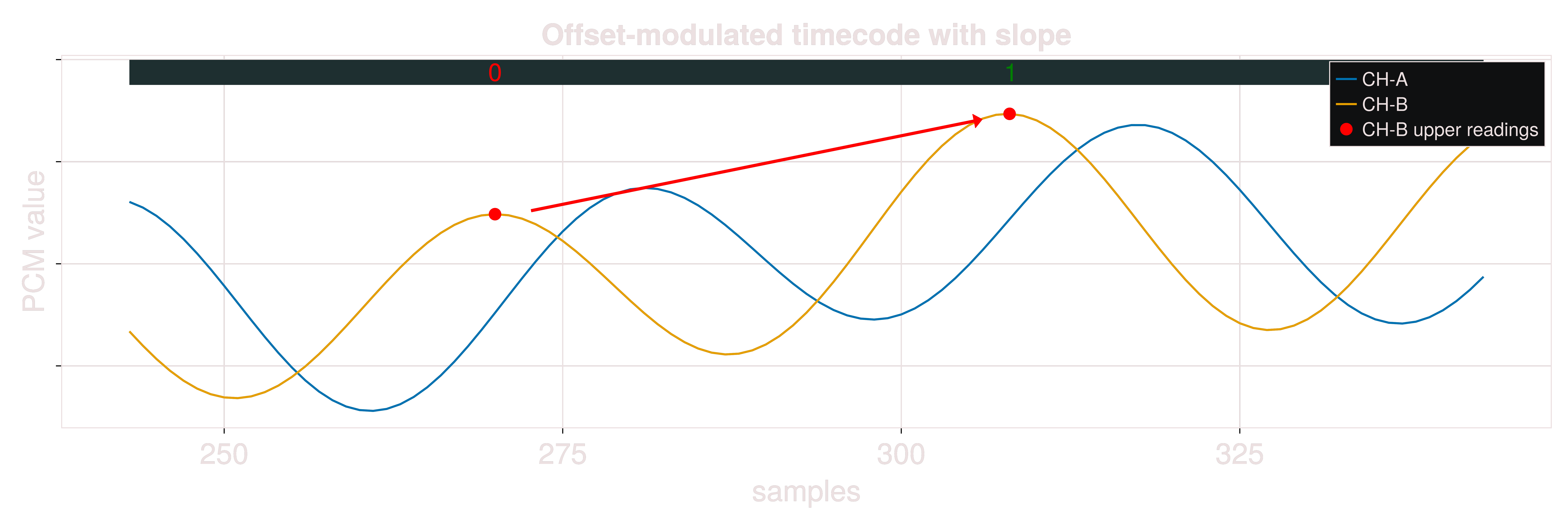

To compensate, we analyze the slope between subsequent readings by reusing the derivative equation in \(\text{(1)}\).

\(\text{where:}\)
\(\text{- x[n]: Current reading}\)
\(\text{- x[n-1]: Last reading}\)
\(\text{- y[n]: Difference of both values}\)

We then decode a positive slope to toggle the bit to 1 and a negative slope to toggle the bit to 0.

This method helps isolate the encoded signal from the floating zero line caused by mechanical drift.

The Code

Note: A deeper explanation of LFSRs can be found in DVS Internals Pt. 2

Interestingly, the Traktor MK2 system also uses a Linear Feedback Shift Register - but with different properties. While Serato’s LFSR has a 20-bit length, Traktor’s uses a 110-bit register with a minimum run length of two symbols. The generator polynomial of the the LFSR was found by using the Berlekamp-Massey algorithm.

The number of unique states an LFSR can generate is:

Hence for the Serato timecode

and for the Traktor MK2 timecode

That’s an astronomically high number-far beyond what’s required for this application.

But how many states are actually needed? With a 2500 Hz carrier, you get 2500 bits per second.

For 12 minutes of timecode:

which exceeds the maximum state range of Serato’s 20-bit LFSR by far.

However, a downside appears: each 110-bit state must be stored in 128 bits (4 × 32-bit integers).

So for the A-side with 12 minutes:

And for a 25-minute CD:

Disadvantage: The memory footprint is large-even a single side of timecode can exceed 27 MB.

This makes storing a full lookup table impractical in production software.

It's important to point out that the current implementation is naive, because it treats the Traktor MK2 code as if it were Serato code. Since Mark Hills designed the xwax library, which is used by vinyl control in Mixxx, for exactly this style of timecode, changes would have to be made to make the decoder more modular.

Nonetheless, the current technique works and it represents the current state of the decoder in Mixxx.

Conclusion

Fortunately, there are mathematical methods to reduce the memory requirements. This requires diving deeper into the crypthographic theory.

First tests show that this can possibly be achieved by applying a fixed tap pattern (e.g. every 5th bit) to a 110-bit LFSR window - a form of structured decimation or undersampling. This collapses the sequence into a 22-bit Gold code, whose two sequences alternate. The implementation of this technique is far more complex and not completed yet.

We’ll explore those strategies in the next part of this series.
